DF200 AT

Product Overview

The DF200A is an “In Line” four-stroke outboard that is packed with technology. This engine with large displacement also has lots of torque and plenty of power. The DF200A is a clean runner and certified with a 3-Star Ultra-Low Emission rating from the California Air Resources Board (CARB). It has also met the EPA 2010 standard.

Features
Specifications

Features

• Multi-Point Sequential Electronic Fuel Injection
• Two-Stage Gear Reduction System
• Offset Driveshaft
• Direct Ignition
• Over-Rev. Limiter
• Low Oil Pressure Caution
• Fully Transistorized Ignition
• Timing Chain
• Fresh Water Flushing System
• Power Trim and Tilt
• Tilt Limit
• Speedometer Pickup on Gear Case

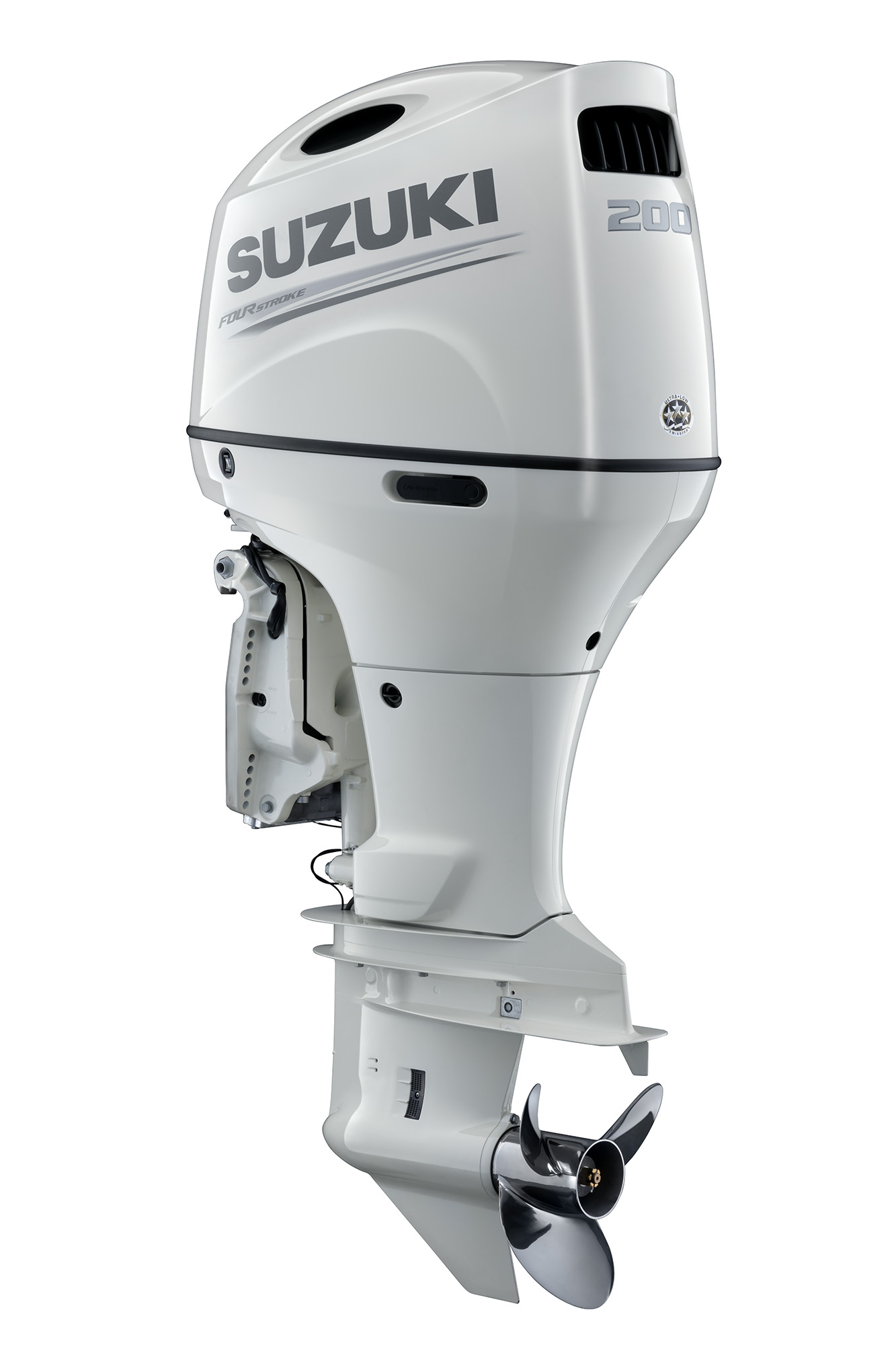

• Standard Color is Shadow Black Metallic – Now Available in Cool White
• Suzuki Anti-Corrosion System

Specifications

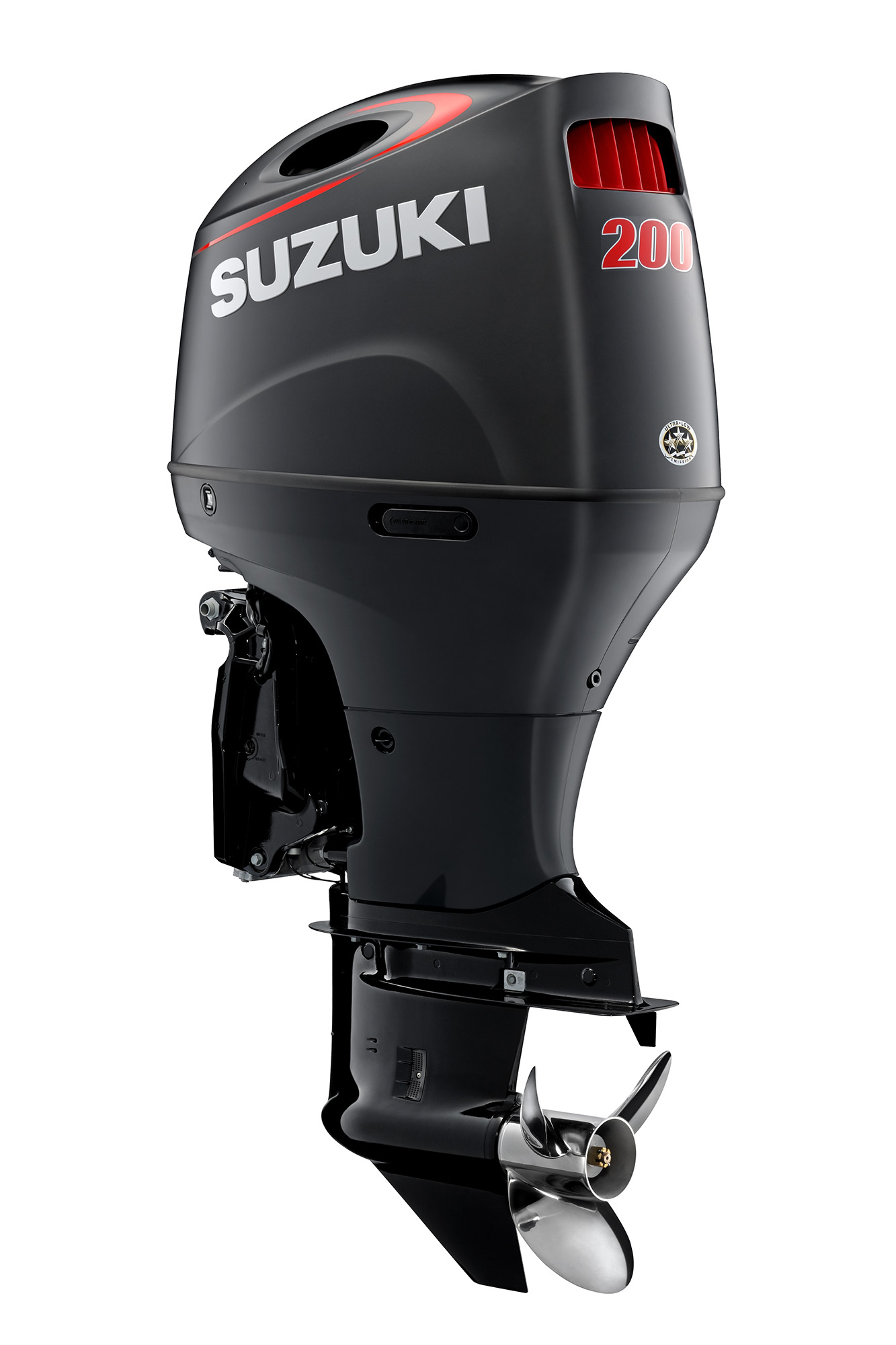

• Color Options: Pearl Nebular Black or Cool White
• Recommended Transom Height: L: 20 in, X: 25 in
• Starting System: Electric
• Weight LBS: Mechanical Controls: L-518, X-529 / Drive by Wire: L-520, X:531
• Engine Type: DOHC 16-Valve
• Fuel Delivery System: Multi Point Sequential Electronic Fuel Injection
• Cylinders: In Line 4
• Piston Displacement inches (cc): 175.9 (2,867)
• Bore X Stroke Inches (m): 3.81 x 3.81 (97 x 97)
• Maximum Output HP: 200
• Operating Range (RPM): 5500-6100
• Steering: Remote
• Oil Pan Capacity quarts (liter): 8.5 (8.0)
• Ignition System: Solid State Direct Ignition
• Alternator: 12V 44A
• Trim Position: Power Trim and Tilt
• Gear Ratio: 2.50:1
• Propeller Selection: 17-27.5
