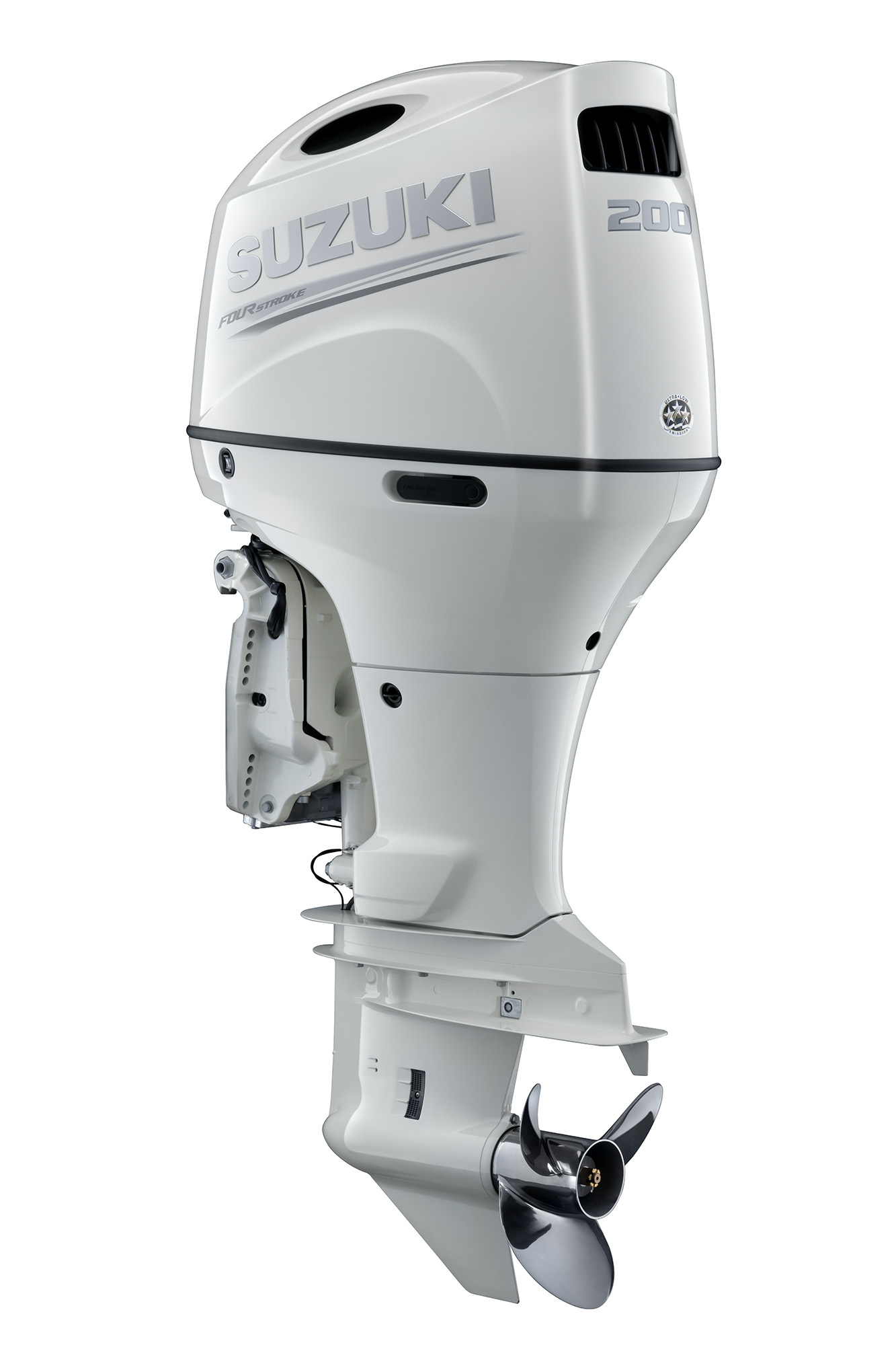

DF200 AP
Product Overview
The DF200AP incorporates the Drive by Wire Suzuki Precision Control System for easy, smooth and precise throttle response and shift operation. The AP model also incorporates Suzuki Selective Rotation which enables the outboard to operate in either clockwise or standard rotation. The DF200AP is based on an inline four cylinder DOHC powerhead with a 2,879 cm3 (174.0 cu.in.) displacement. This four-stroke engine has large displacement, lots of torque, plenty of power and is packed with technology. The DF200AP engine is a clean runner and certified with a 3-Star Ultra-Low Emission rating from the California Air Resources Board (CARB) and has also met the EPA 2010 standard.
Features
• 02 Sensor Feedback Control System
• Electronic Fuel Injection
• Suzuki Precision Control System
• Multi-Point Sequential Electronic Fuel Injection
• Two-Stage Gear Reduction System
• Offset Driveshaft
• Direct Ignition
• Over-Rev. Limiter
• Low Oil Pressure Caution
• Timing Chain
• Fresh Water Flushing System
• Power Trim and Tilt
• Tilt Limit
• Speedometer Pickup on Gear Case
• Standard Color is Pearl Nebular Black – Now Available in Cool White
• Suzuki Anti-Corrosion System
Specifications
• Body Color: Pearl Nebular Black or Cool White
• Recommended Transom Height: L: 20 in, X: 25 in
• Starting System: Electric
• Weight LBS: Mechanical Controls: L-581, X-529 / Drive by Wire: L-520, X:531
• Engine Type: DOHC 16-Valve
• Fuel Delivery System: Multi Point Sequential Electronic Fuel Injection
• Cylinders: In Line 4
• Piston Displacement inches (cc): 175.9 (2,867)
• Bore X Stroke Inches (m): 3.81 x 3.81 (97 x 97)
• Maximum Output HP: 200
• Operating Range (RPM): 5500-6100
• Steering: Remote
• Oil Pan Capacity quarts (liter): 8.5 (8.0)
• Ignition System: Solid State Direct Ignition
• Alternator: 127 44A
• Trim Position: Power Trim and Tilt
• Gear Ratio: 2.50:1
• Propeller Selection: 17-27.5
DF200APL2
20″ shaft, Black Cowling, Standard or Counter
DF200APLW2
20″ shaft, White Cowling, Standard or Counter
DF200APX2
25″ shaft, Black Cowling, Standard or Counter
DF200APXW2
25″ shaft, White Cowling, Standard or Counter
