DF175 AP
Product Overview
Suzuki’s DF175AP features the Drive by Wire Suzuki Precision Control System for easy, smooth and precise throttle and shift operation. The AP model also incorporates Suzuki Select Rotation, enabling the outboard to operate in either clockwise standard rotation or counter clockwise rotation. The DF175AP is based on an inline four cylinder DOHC powerhead with a 2,867cm³ (174.9 cu.in.) displacement. While the large displacement provides exceptional acceleration and torque, Suzuki’s engineers have targeted this big block motor to be one of the most versatile four strokes in the 175 HP class.
Features
• 02 Sensor Feedback Control System
• Multi Point Sequential Electronic Fuel Injection
• Suzuki Precision Control
• Suzuki Selective Rotation
• Variable Valve Timing System
• Multi-Stage Induction System
• Two-Stage Gear Reduction System
• Offset Driveshaft
• Direct Ignition
• Thrust Mount System
• Over-Rev. Limiter
• Low Oil Pressure Caution
• Fully Transistorized Ignition
• Timing Chain
• Fresh Water Flushing System
• Power Trim and Tilt
• Tilt Limit
• Speedometer Pickup of Gear Case

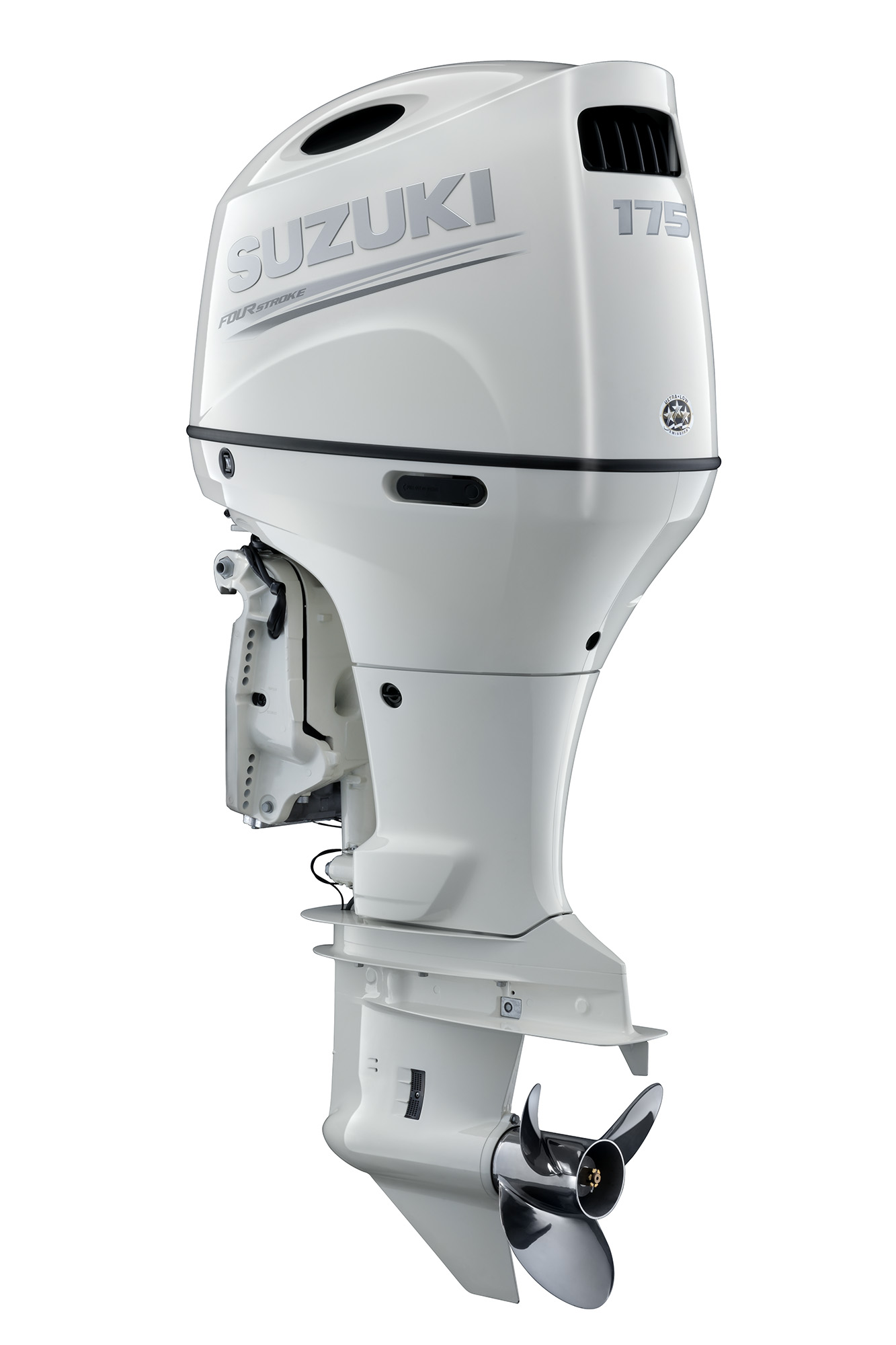

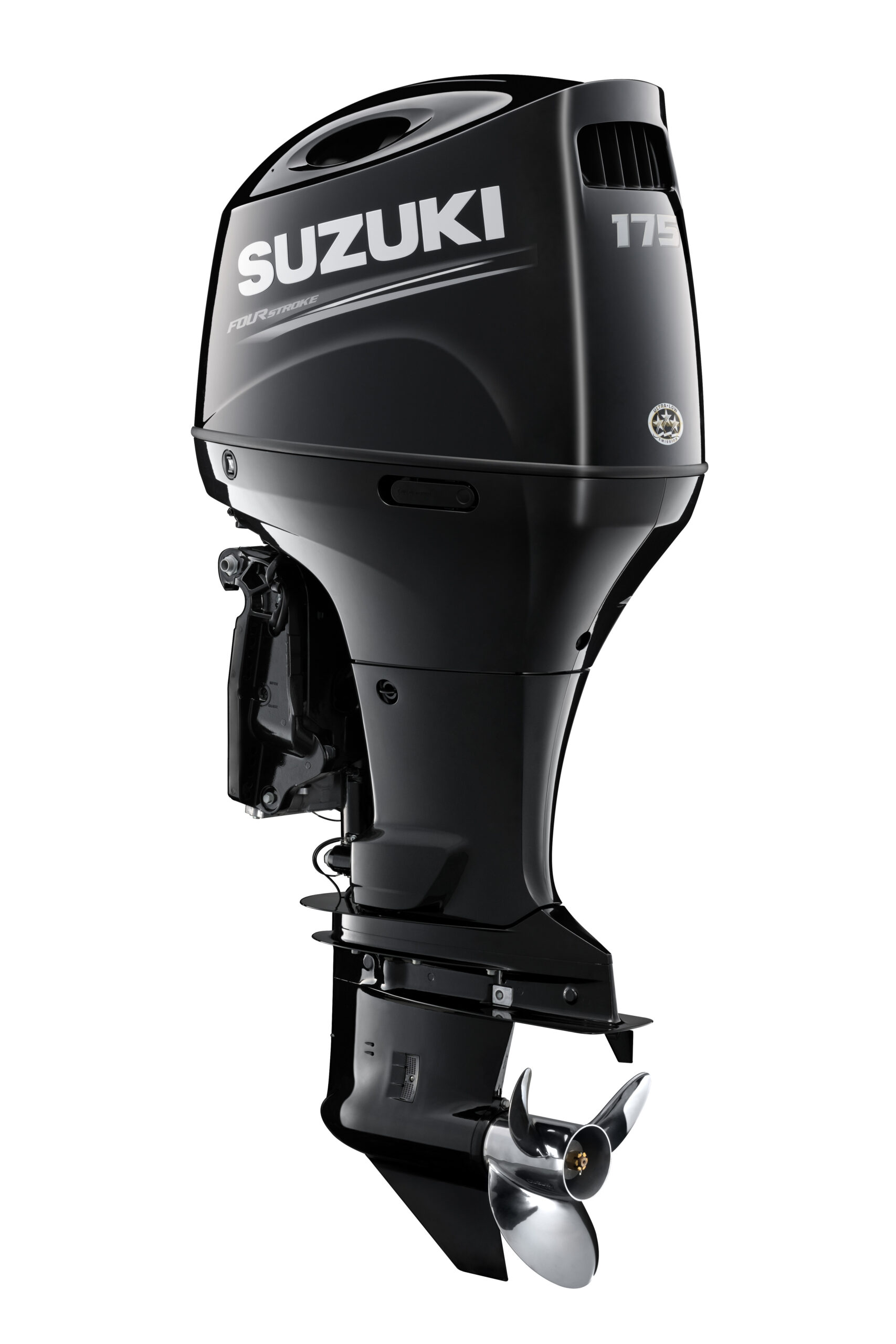

• Standard Color is Pearl Nebular Black – Now Available in Cool White
• Suzuki Anti-Corrosion System
Specifications
• Color Options: Pearl Nebular Black or Cool White
• Recommended Transom Height: L: 20 in, X: 25 in
• Starting System: Electric
• Weight LBS: Mechanical Controls: L-511 X-529 / Drive by Wire: L-520 X:531
• Engine Type: DOHC 16-Valve
• Fuel Delivery System: Multi Point Sequential Electronic Fuel Injection
• Cylinders: 4
• Piston Displacement inches (cc): 174.9 (2867)
• Bore X Stroke Inches (m): 3.81 x 3.81 (97 x 97)
• Maximum Output HP: 175
• Operating Range (RPM): 5500-6100
• Steering: Remote
• Oil Pan Capacity quarts (liter): 8.5 (8.0)
• Ignition System: Solid State Direct Ignition
• Alternator: 127 44A
• Trim Position: Power Trim and Tilt
• Gear Ratio: 2.50:1
• Propeller Selection: 17-29
DF175APL2
20″ shaft, Black Cowling, Standard or Counter
DF175APLW2
20″ shaft, White Cowling, Standard or Counter
DF175APX2
25″ shaft, Black Cowling, Standard or Counter
DF175APXW2
25″ shaft, White Cowling, Standard or Counter
