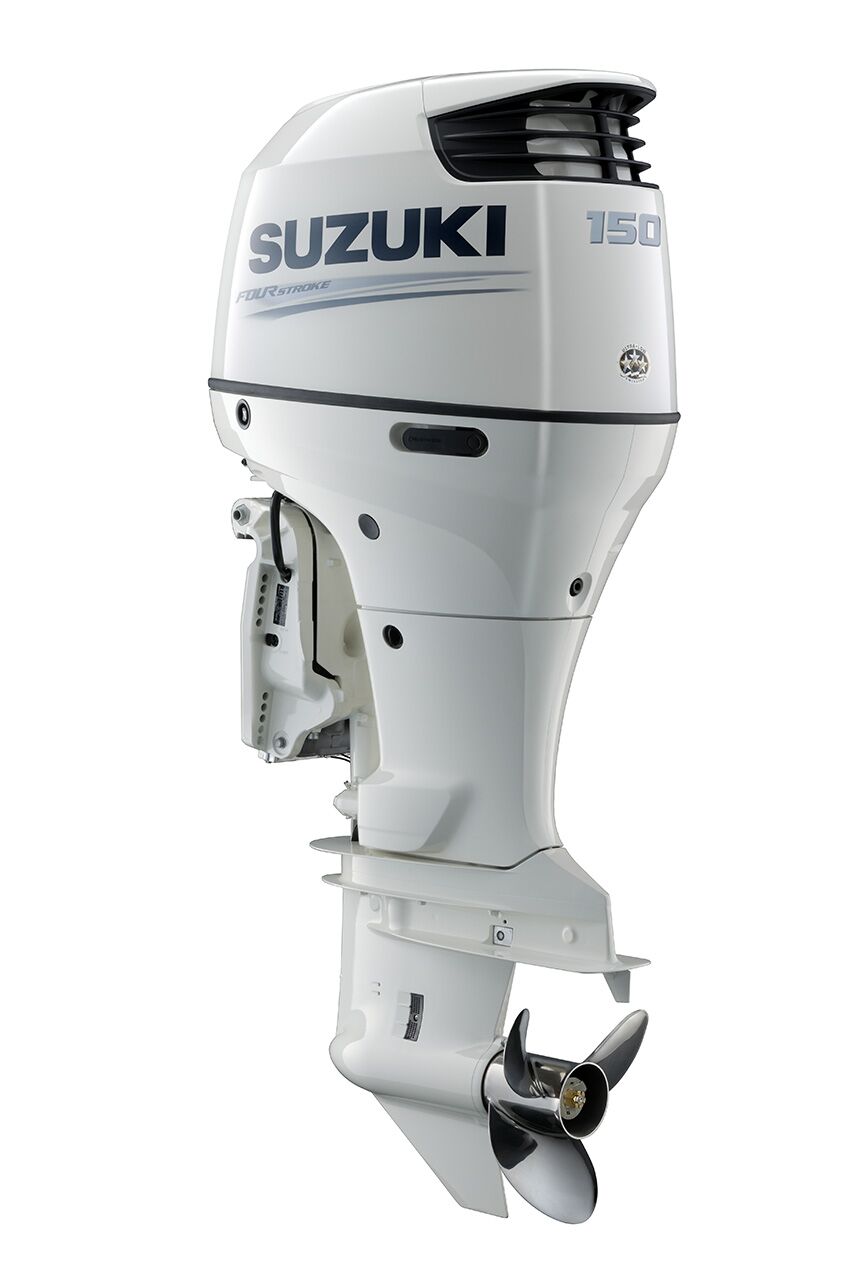

DF150 AT
Product Overview

The Suzuki DF150 AT is based on an inline four-cylinder DOHC powerhead with a 2,837 cm3 displacement. This motor features “Lean Burn” technology for improved efficiency and a “High Compression” ratio of 10.2:1 for improved performance. The large displacement produces exceptional acceleration and torque; however, this motor is still one of the lightest four strokes in the 150 HP class.

Features

• Multi-Point Sequential Electronic Fuel Injection
• Multi-Stage Induction System
• Two-Stage Gear Reduction System
• Offset Driveshaft
• Direct Ignition
• Thrust Mount System
• Over-Rev. Limiter
• Low Oil Pressure Caution
• Fully Transistorized Ignition
• Timing Chain
• Fresh Water Flushing System
• Power Trim and Tilt
• Tilt Limit
• Speedometer Pickup of Gear Case
• Suzuki Anti-Corrosion System

Specifications

• Color Options: Pearl Nebular Black or Cool White
• Recommended Transom Height: L: 20 in, X: 25 in
•Starting System: Electric
• Weight: Mechanical: L: 511 lbs, X: 522 lbs / Drive by Wire: L: 520 lbs, X: 531 lbs
• Engine Type: DOHC 16-Valve
• Fuel Delivery System: Multi Point Sequential Electronic Fuel Injection
• Cylinders: 4
• Piston Displacement inches (cc): 174.9 (2867)
• Bore X Stroke Inches (mm): 3.81 x 3.81 (97 x 97)
• Maximum Output HP: 150
• Operating Range (RPM): 5000-6000
• Steering: Remote
• Oil Pan Capacity quarts (liter):8.5 (8.0)
• Ignition System: Solid State Direct Ignition
• Alternator: 12V 44A
• Trim Position: Power Trim and Tilt
• Gear Ratio: 2.50:1
• Propeller Selection: 17-19

DF150ATL2

Quick Quote

20″ shaft, Black Cowling, Standard Rotation

DF150ATLW2

Quick Quote

20″ shaft, White Cowling, Standard Rotation

DF150ATLSS2

Quick Quote

20″ shaft, Matte Black Cowling, Standard Rotation

DF150ATX2

Quick Quote

25″ shaft, Black Cowling, Standard Rotation

DF150ATXW2

Quick Quote

25″ shaft, White Cowling, Standard Rotation

DF150ATXSS2

Quick Quote

25″ shaft, Matte Black Cowling, Standard Rotation

DF150ATXZ2

Quick Quote

25″ shaft, Black Cowling, Counter Rotation

DF150ATXZW2

Quick Quote

25″ shaft, White Cowling, Counter Rotation
