DF140 AT

Product Overview

The DF140 AT provides exceptional performance with its light and compact design, giving it the best power-to-weight ratio in its class. The engine cover design features a large air induction port to provide maximum airflow and power. It is the first 4-stroke to utilize an oil cooler, ensuring that all the horsepower is available under every condition. This motor provides heavy-duty performance and long-lasting durability in a lightweight package.

Features
Specifications

Features

• Multi-Point Sequential Electronic Fuel Injection
• Suzuki Lean Burn Control System
• Two-Stage Gear Reduction System
• Offset Driveshaft
• Over-Rev. Limiter
• Low Oil Pressure Caution
• Fully Transistorized Ignition
• Timing Chain
• Fresh Water Flushing System
• Power Trim and Tilt
• Tilt Limit
• Speedometer Pickup of Gear Case
• Suzuki Anti-Corrosion System

Specifications

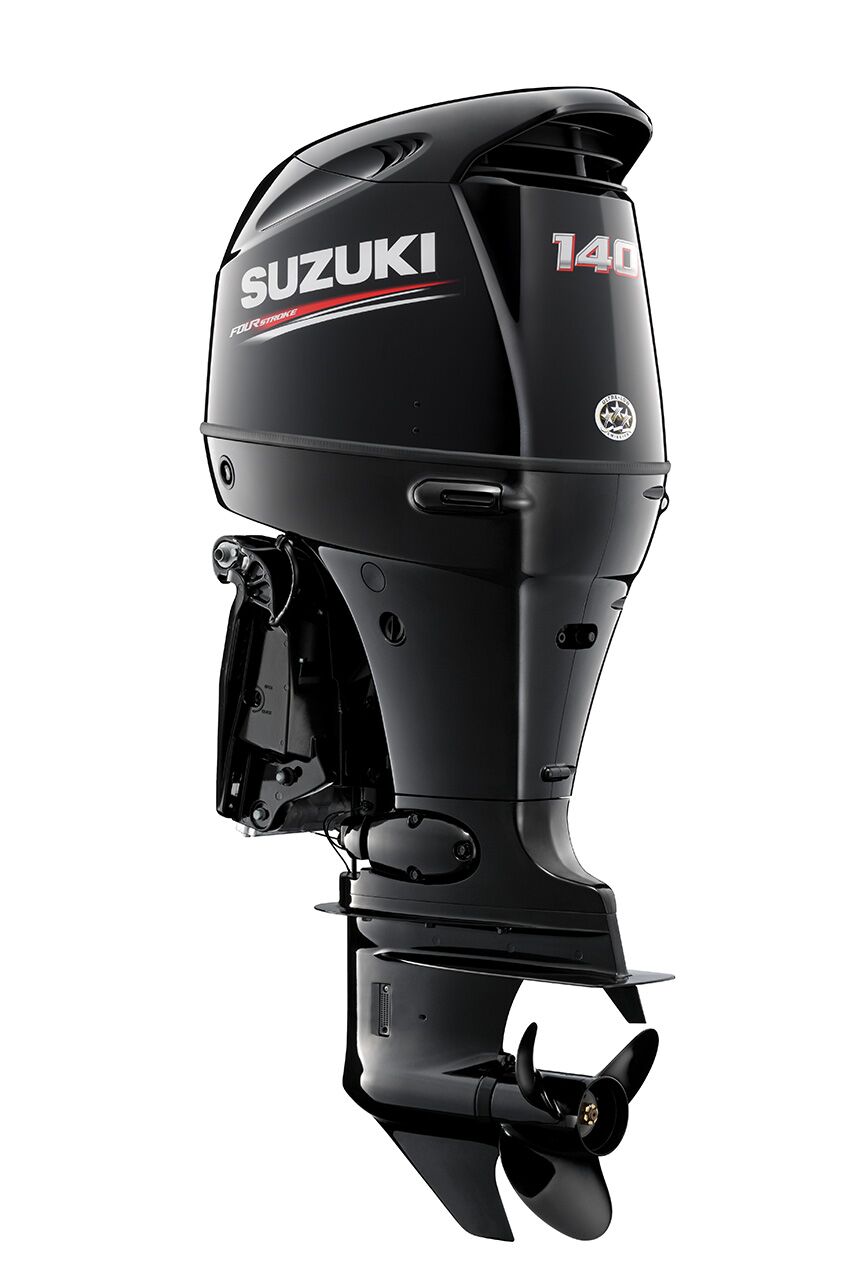

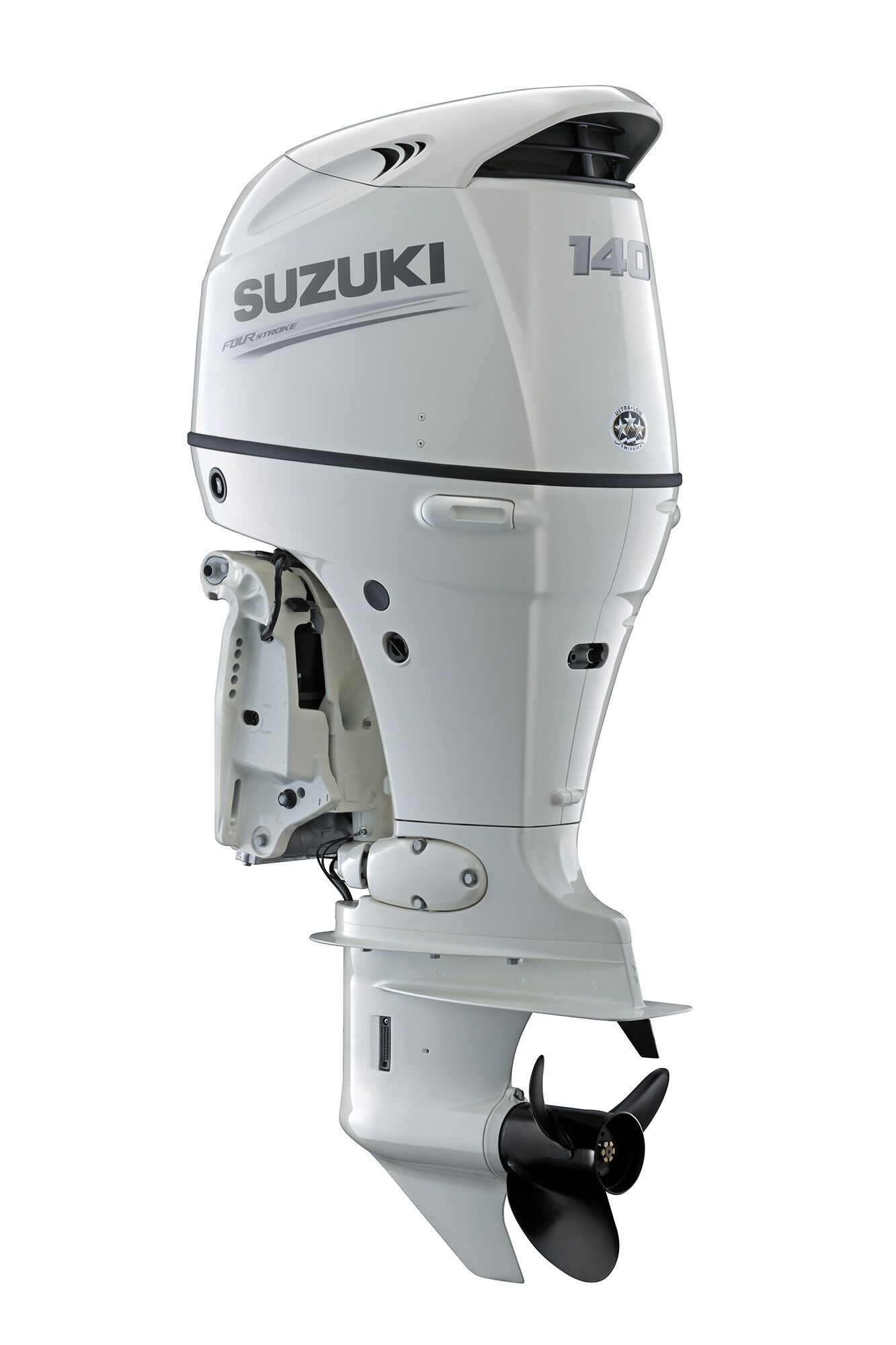

• Color Options: Pearl Nebular Black or Cool White
• Recommended Transom Height: L: 20 in, X: 25 in
• Weight: L: 394 lbs, X: 405 lbs
• Engine Type: DOHC 16-Valve
• Fuel Delivery System: Multi Point Sequential Electronic Fuel Injection
• Cylinders: 4
• Piston Displacement inches (cc): 124.7 (2044)
• Bore X Stroke Inches (mm): 3.40 x 3.50 (86 x 88)
• Maximum Output HP: 140
• Operating Range (RPM): 5600-6200
• Steering: Remote
• Oil Pan Capacity quarts (liter): 5.8 (5.5)
• Ignition System: Solid State Electronic Ignition
• Alternator: 12V 40A
• Trim Position: Power Trim and Tilt
• Gear Ratio: 2.59:1
• Propeller Selection: 15-26
